Ocular::Graphics::D3D11DepthTexture Class Reference
Ocular » Graphics | Ocular

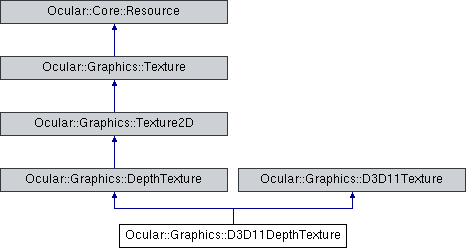

Inheritance diagram for Ocular::Graphics::D3D11DepthTexture:
Ocular::Graphics::DepthTexture Ocular::Graphics::D3D11Texture Ocular::Graphics::Texture2D Ocular::Graphics::Texture Ocular::Core::Resource

Public Member Functions

 D3D11DepthTexture (TextureDescriptor const &descriptor, ID3D11Device *device)

ID3D11DepthStencilView * getD3DDepthStencilView ()

virtual void unload () override

virtual void apply () override

virtual void refresh () override

- Public Member Functions inherited from Ocular::Graphics::DepthTexture
 DepthTexture (TextureDescriptor const &descriptor)

- Public Member Functions inherited from Ocular::Graphics::Texture2D
 Texture2D (TextureDescriptor const &descriptor)

Core::Color getPixel (uint32_t x, uint32_t y) const

bool setPixel (uint32_t x, uint32_t y, Core::Color const &color)

bool getPixels (std::vector< Core::Color > &pixels, uint32_t startX=0, uint32_t startY=0, uint32_t width=0, uint32_t height=0) const

bool setPixels (std::vector< Core::Color > const &pixels, uint32_t startX=0, uint32_t startY=0, uint32_t width=0, uint32_t height=0)

unsigned getWidth () const

void setWidth (uint32_t const &width)

unsigned getHeight () const

void setHeight (uint32_t const &height)

- Public Member Functions inherited from Ocular::Graphics::Texture
 Texture (TextureDescriptor const &descriptor)

TextureDescriptor getDescriptor () const

- Public Member Functions inherited from Ocular::Core::Resource
 Resource (File const &source)

virtual void forceLoad ()

File getSourceFile () const

void setSourceFile (File const &file)

void setIsInMemory (bool inMemory)

bool isInMemory () const

void setSize (uint64_t size)

uint64_t getSize () const

ResourceType getResourceType () const

void setName (std::string const &name)

std::string const & getName () const

std::string const & getMappingName () const

void setMappingName (std::string const &name)

ResourceMetadata * getMetadata () const

void setMetadata (ResourceMetadata *metadata)

- Public Member Functions inherited from Ocular::Graphics::D3D11Texture
 D3D11Texture (ID3D11Device *device)

ID3D11Texture2D * getD3DTexture2D ()

ID3D11ShaderResourceView * getD3DShaderResource ()


Protected Member Functions

bool createD3DResources ()

bool createD3DDepthStencil ()

virtual bool createD3DTexture2D (TextureDescriptor const &descriptor) override

- Protected Member Functions inherited from Ocular::Graphics::Texture2D
void getTrueDimensions (uint32_t startX, uint32_t startY, uint32_t &trueWidth, uint32_t &trueHeight) const

- Protected Member Functions inherited from Ocular::Graphics::D3D11Texture
virtual bool createD3DShaderResource (TextureDescriptor const &descriptor)

void refresh (std::vector< Core::Color > &pixels, Graphics::TextureDescriptor const &descriptor)


Protected Attributes

ID3D11DepthStencilView * m_D3DDepthStencilView

- Protected Attributes inherited from Ocular::Graphics::Texture2D
std::vector< Core::Color > m_Pixels

- Protected Attributes inherited from Ocular::Graphics::Texture
TextureDescriptor m_Descriptor

- Protected Attributes inherited from Ocular::Core::Resource
ResourceType m_Type

ResourceMetadata * m_Metadata

File m_SourceFile

bool m_IsInMemory

uint64_t m_SizeInMemory

std::string m_Name

std::string m_MappingName

- Protected Attributes inherited from Ocular::Graphics::D3D11Texture
ID3D11Device * m_D3DDevice

ID3D11Texture2D * m_D3DTexture

ID3D11ShaderResourceView * m_D3DShaderResourceView

DXGI_FORMAT m_D3DFormat


Constructor & Destructor Documentation

Ocular::Graphics::D3D11DepthTexture::D3D11DepthTexture ( TextureDescriptor const &  descriptor,
ID3D11Device *  device
)
Parameters
[in]descriptorTextureDescriptor for this DepthTexture
[in]deviceThe D3D11 device

Member Function Documentation

void Ocular::Graphics::D3D11DepthTexture::apply ( )
overridevirtual

Uploads all CPU related changes to the GPU (CPU to GPU upload)

Note
The texture must have been created with CPU access of TextureAccess::WriteOnly or TextureAccess::ReadWrite.
Todo:
Apply CPU changes to DSV

Reimplemented from Ocular::Graphics::DepthTexture.

ID3D11DepthStencilView * Ocular::Graphics::D3D11DepthTexture::getD3DDepthStencilView ( )
Returns
The ID3D11DepthStencilView associated with this DepthTexture
void Ocular::Graphics::D3D11DepthTexture::refresh ( )
overridevirtual

Refreshes the CPU data with any GPU changes (GPU to CPU download)

Note
The texture must have been created with CPU access of TextureAccess::ReadOnly or TextureAccess::ReadWrite.

Reimplemented from Ocular::Graphics::DepthTexture.

void Ocular::Graphics::D3D11DepthTexture::unload ( )
overridevirtual

Frees all CPU and GPU related data for this RenderTexture.

Reimplemented from Ocular::Graphics::DepthTexture.

The documentation for this class was generated from the following files:
